Encircled Flux Meter MPX-1A
A benchtop instrument that measures the modal launch condition (Encircled Flux) of a multimode light source and patchcord at 850 nm. It is used to verify that a test source meets the launch requirements of the multimode loss-measurement standards.
Technical overview
The MPX-1A images the near-field output of a connected source onto a CMOS array and derives the Encircled Flux profile in real time. Auto-focus and auto-exposure remove operator dependence, and an integrated 850 nm over-filled reference source allows the launch to be checked against the standard limits. Measurements are reported against TIA-526-14-A, IEC 61280-4-1, TIA/EIA-455-203, IEC 61280-1-4 and IEEE 802.3. The unit connects to a Windows PC over USB 3.0 and offers an optional API for production integration.
Features
- Automatic Focus System & Optimal Exposure Filter ensures rapid, accurate, and consistent data capture with minimal operator training required
- Latest CMOS camera technology enables accurate and rapid measurements
- Real-Time Measurement for easy adjustment of modal conditions and boosts productivity
- Standards compliant including TIA-526-14-A, IEC 61280-4-1, TIA/EIA-455-203, IEC 61280-1-4, IEEE 802.3
- USB 3.0 Connectivity provides easy portability and seamless deployment across various sites
- Optional Geometrical Calibration Artifact for easy calibration
- API Software Control for integration to the production environment
Specifications
| Parameter | Value |
|---|---|
| Maximum core diameter | 110 um |
| Measurement time | Real-time |
| Source power range | Approx. -40 to 10 (depends on power density, fiber type, etc) dBm |
| Input connector adaptors available | Universal 2.5 mm ferrule, LC, FC, ST, SC, MTP, Bare fiber |
| End face inspection and focusing | 850 nm LED |
| Sensor wavelength range | 850 nm (Encircled Flux measurement range is from 400 to 1,100 nm) |
| Image sensor | CMOS array, 3.45 um square pixels |
| Dynamic range | 73 dB |
| Built-in reference source | 850 nm LED, FC connector, over-filled (110 um core diameter; 0.37 N.A.) |
| Size | 155 (W) x 330 (D) x 125 (H) mm |
| Weight | 4.0 kg |
| Operating temperature | 5 - 35 degC |
| Humidity | 5% - 95%, relative, non-condensing |
| Computer requirements (minimum) | 2.5 GHz or higher processor, 8 GB RAM |
| Connection to computer | 1 x USB 3.0 (USB B to USB A: 2 m cable supplied) |
| Power | 15 V / 30 W (external power supply supplied) |
| Operating systems supported | Windows 10/11, 64 bit |
| Part number - MPX-1A | MPX-1A system for real-time, semi-automated measurement of Encircled Flux at 850 nm; fitted with 1 x 10 dB and 1 x 20 dB filters |
| Part number - MPX-1A-V | MPX-1A system for real-time, semi-automated measurement of Encircled Flux at 850 nm; fitted with 2 x 20 dB filters |
Applications
- Source and patchcord characterisation for IEC11801 and TIA/EIA568 LAN testing
- VCSEL characterization for Gigabit Ethernet IEEE 802.3
- Mode-scrambler and mode-filter characterisation
- Measure sources to IEC 61280-4-1
- Alignment of pig-tailed light sources
You may also like
A two-channel mechanical fiber shaker that continuously agitates a multimode test jumper so that laser speckle averages out during Encircled Flux and loss measurements.
A bench interferometer that inspects and measures the surface quality, flatness and end angle of cleaved or polished fiber end faces in 2D and 3D. Three models cover fiber diameters from 80 um to 2000 um.

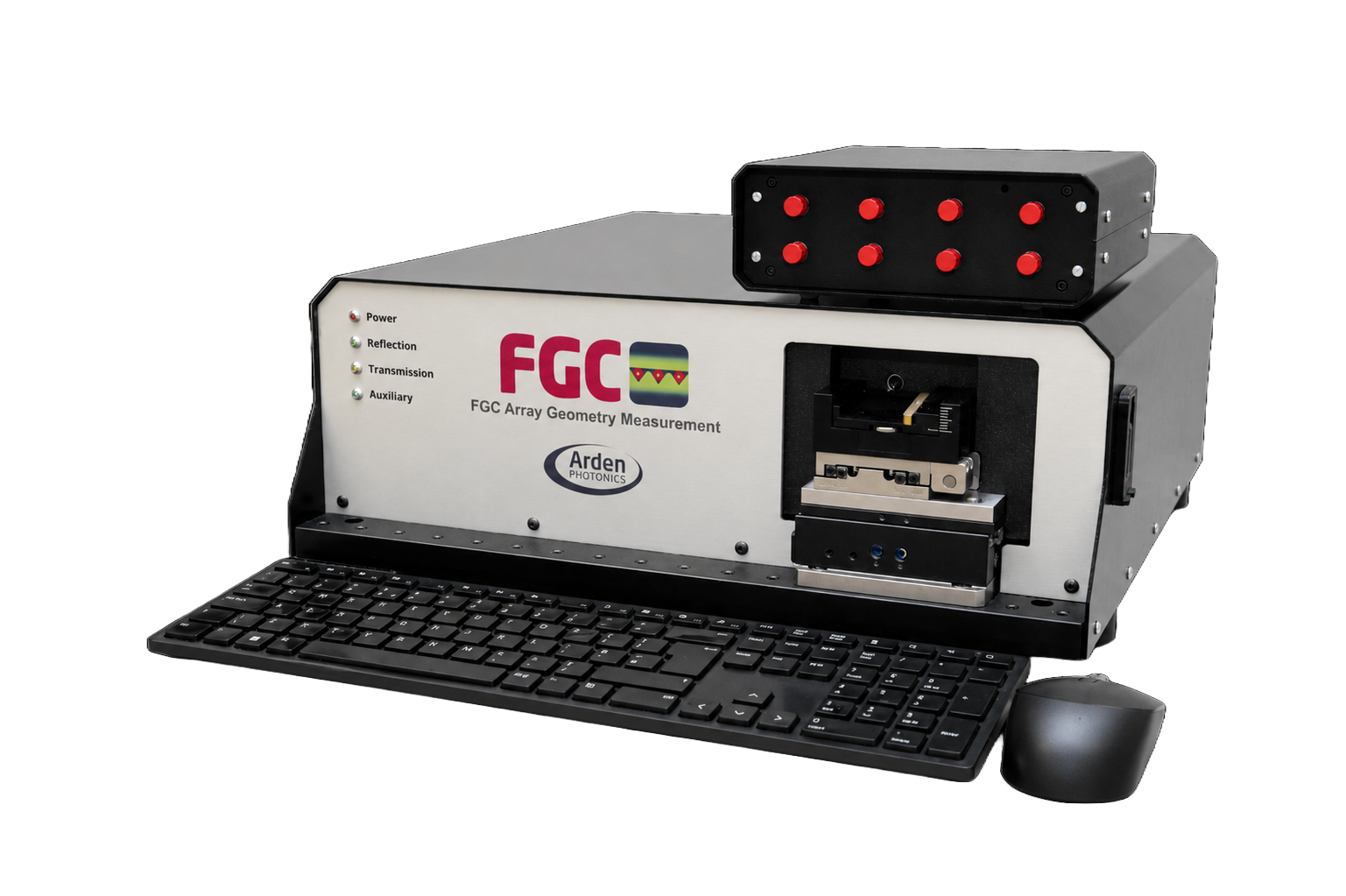

An automated measurement system for the geometry of 1D and 2D Fiber Array Units (FAUs) and MT ferrules, reporting core X-Y positions, core-to-core pitch and PM stress rod angles.
