Fiber Infrastructure Protection & Inspection Tools
Non-sensing fiber hardware sold under the FiberStrike brand: the CSP FiberShear controlled shear point cabinet connectivity system and a handheld connector end-face inspection scope.

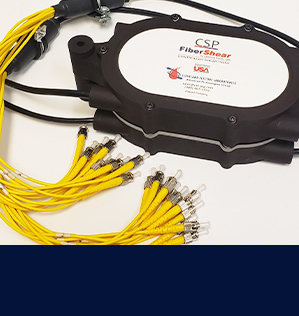

A controlled shear point splice enclosure for roadside cabinets that lets a fiber drop cable break away cleanly at the cabinet base during an impact, protecting the buried cable and the cabinet equipment ports.

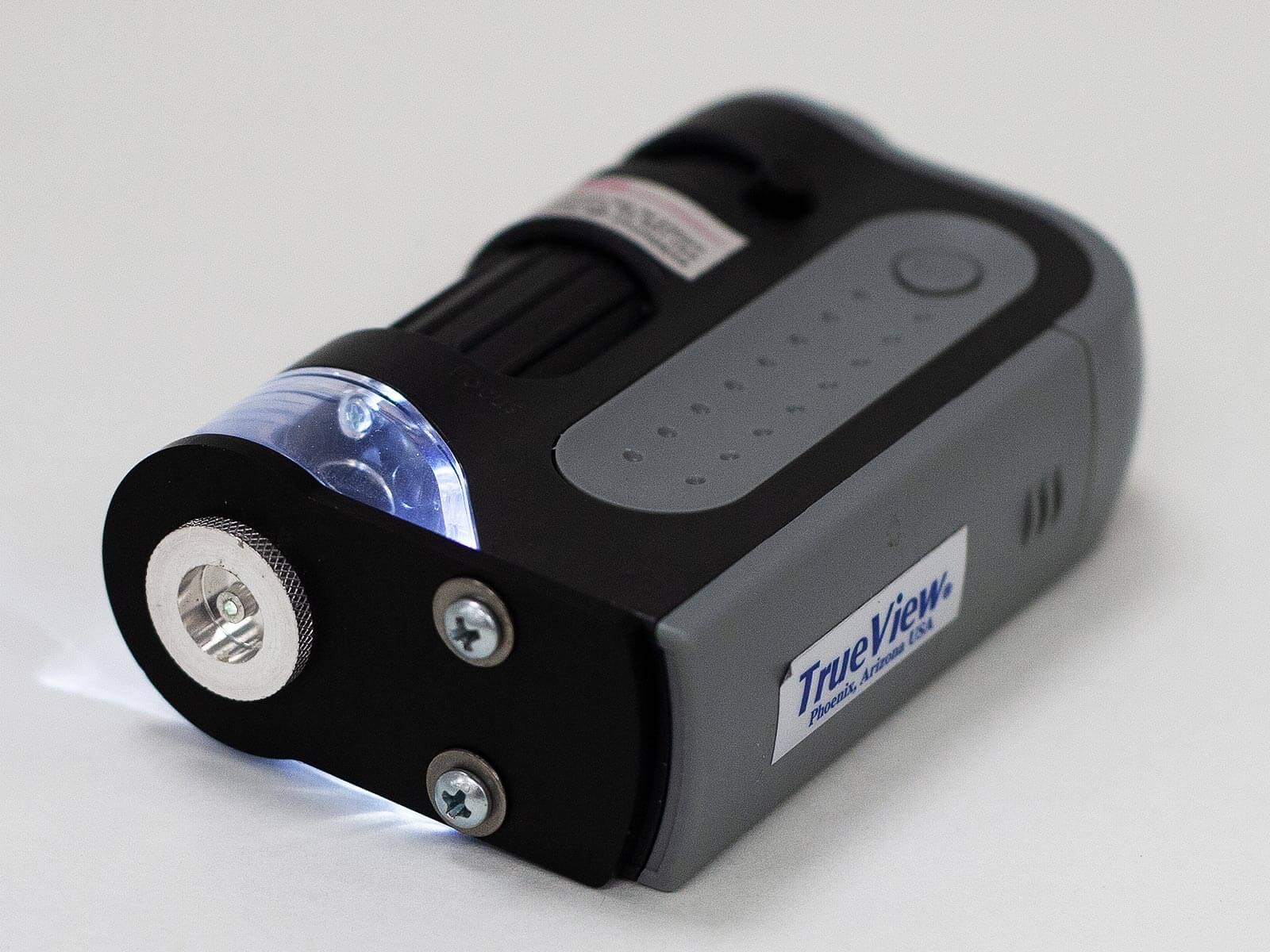

A handheld LED-illuminated fiber connector end-face inspection scope with adjustable 60x to 120x magnification, aimed at telecommunications installers. Supplied with a universal 2.5 mm adapter.
Specifications summary
| Product | Circuit loss reduction | Drop cable increments | Drop cable fiber count options | Pull tension of a single fiber jumper (the component CSP replaces) | Shear detection range cited for fiber optic shear detectors | Connector Styles |
|---|---|---|---|---|---|---|
| CSP FiberShear Direct Connect | as much as half a dB dB | 50 ft | 2, 4, 6 or 12 fiber | inconsistently between 15 and 200 lb | up to 2,000 m | — |
| FiberStrike TVS-F25 120x Fiber Inspection Scope | — | — | — | — | — | SC, ST, and FC (2.5mm universal) |
Datasheets
- CSP FiberShear Direct Connect — manufacturer datasheet
- FiberStrike TVS-F25 120x Fiber Inspection Scope — manufacturer datasheet
Datasheets are hosted by the manufacturer and open in a new tab. OgMentum does not rehost them.
Need help specifying this?
Our application engineers will confirm specifications with the manufacturer and quote for your configuration.
Request Info
