FBG Point Sensors - Temperature, Strain, Displacement & Vibration
Discrete FiberStrike FBG sensing elements measuring temperature, strain, pressure, bolt tension, crack displacement, linear and rotary position, and acceleration.

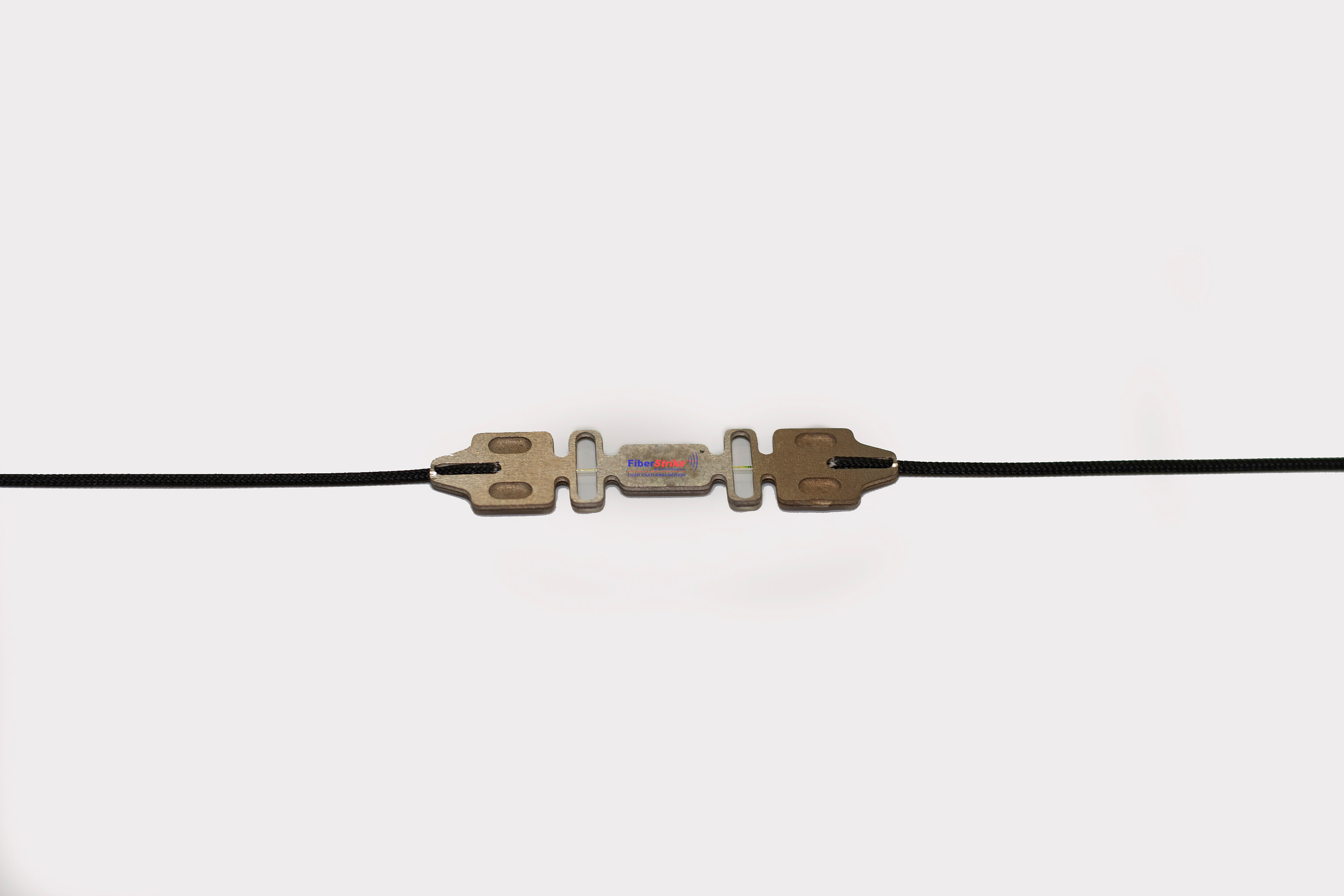

CEL's core range of Fiber Bragg Grating point sensors for temperature, strain and pressure, supplied in many configurations for bonding to existing structures or embedding in new construction.
A patented FBG insert that turns an ordinary structural fastener into a smart fastener, continuously measuring bolt elongation and tension. The insert is fitted into a bored and threaded fastener.
Patent-pending FBG displacement sensors that measure small relative movements between a fixed and a moving reference frame, in one or two axes. Marketed on the FiberStrike site as the FBG Crack Sensor.
FBG-based linear and rotary displacement sensors with configurable mounting and end fittings, available in aluminium or stainless steel bodies for harsh and submersible service.
A fiber optic accelerometer for vibration measurement that can be distributed on a multi-sensor fiber network alongside other FiberStrike sensors. Offered as a drop-in alternative to conventional electrical accelerometers.
Specifications summary
| Product | Measurement resolution (movement) | Minimum measurable movement | Sensors multiplexed on a single optical fiber | Sensing distance, fiber optic end to monitoring equipment, no booster amplifiers | System response time to an event | Minimum fastener body diameter |
|---|---|---|---|---|---|---|
| FiberStrike FBG Temperature, Strain and Pressure Sensors | down to the picometer range pm | 10-12 m (as published; CEL's page renders the exponent without superscript) m | as many as 50 | over 25 km | less than three seconds, average 1.5 seconds s | — |
| FiberStrike LCM-200 Series Brainy Bolts | — | — | 20-30 | — | — | 12.7 mm / 0.50 in |
| FiberStrike LCM-350 Series Displacement / Crack Sensors | — | — | — | — | — | — |
| FiberStrike FBG Linear & Rotary Position Sensors | — | — | — | — | — | — |
| FiberStrike FBG Accelerometer | — | — | — | — | — | — |
Datasheets
- FiberStrike FBG Temperature, Strain and Pressure Sensors — manufacturer datasheet
- FiberStrike LCM-200 Series Brainy Bolts — manufacturer datasheet
- FiberStrike LCM-350 Series Displacement / Crack Sensors — manufacturer datasheet
- FiberStrike FBG Linear & Rotary Position Sensors — manufacturer datasheet
- FiberStrike FBG Accelerometer — manufacturer datasheet
Datasheets are hosted by the manufacturer and open in a new tab. OgMentum does not rehost them.
Need help specifying this?
Our application engineers will confirm specifications with the manufacturer and quote for your configuration.
